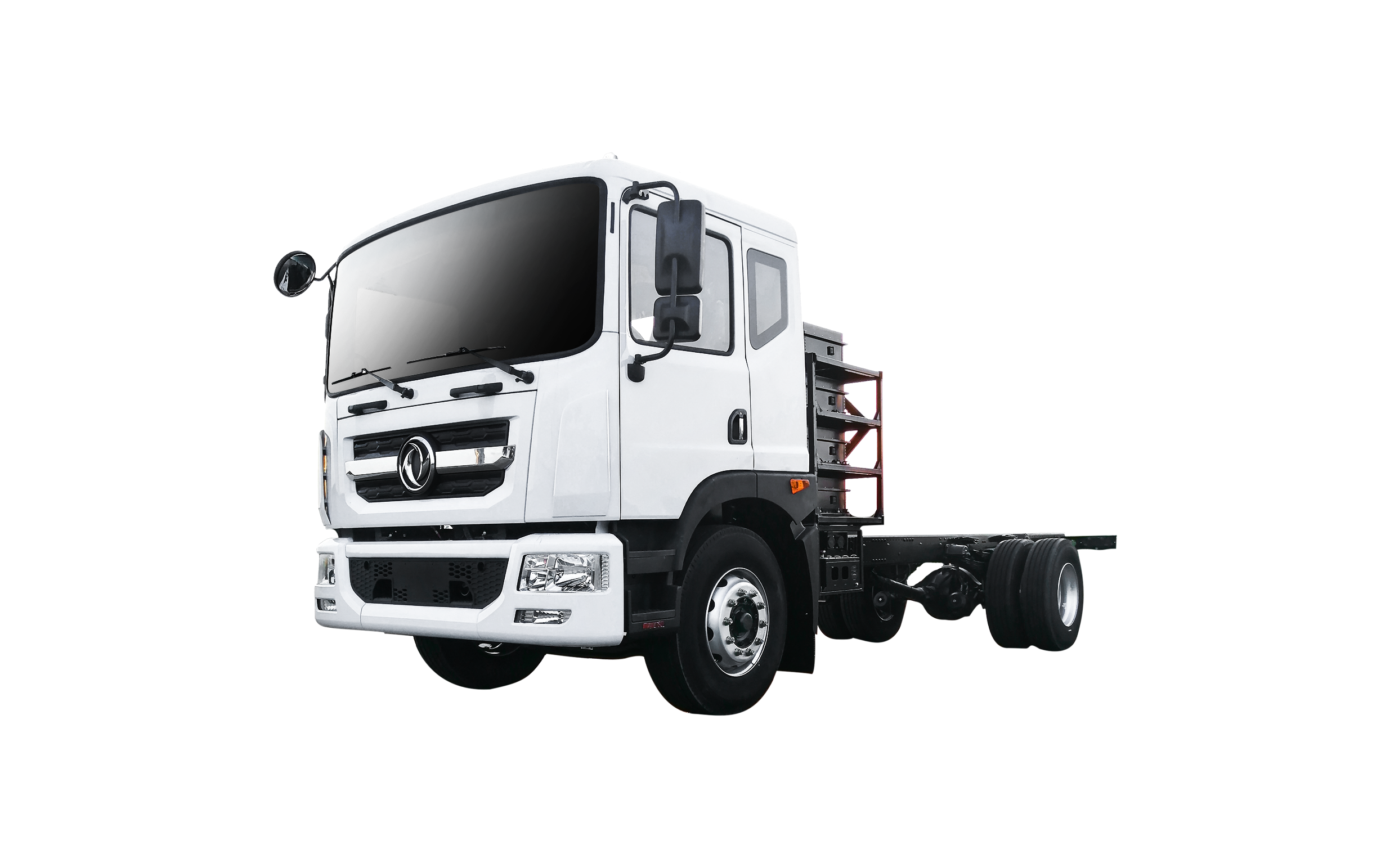

18T Pure Electric And Hydrogen Fuel Chassis
18T Side-mounted Chassis
(1)The battery layout adopts side-mounted layout with shorter chassis but larger room for modification
(2)The cab is equipped with standard electric doors and windows, central locking,MP5, wrapped airbag shock-absorbing seats, high-density foam, and more than 10 storage spaces such as cup holders, card slots, and storage boxes, bringing a comfortable driving experience
(3)The lightweight design: the curb weight of the second-class chassis is 6800kg , and the maximum total mass is 18000kg , which can meet the quality modification requirements of various sanitation vehicles
(4)Equipped with a 210.56kWh large-capacity power battery , which meets the needs of compression garbage trucks, sprinkler cleaning vehicles and other vehicles . The power battery is equipped with water cooling + PTC as standard Heating thermal management system , adapting to the use of vehicles under various environmental conditions
(5)Equipped with 20+60+120kW three high-power working system power-taking interfaces to meet the electrification needs of various special-purpose vehicles
18T Hydrogen Fuel Chassis
(1)The battery is arranged in the back, and the golden wheelbase is 5400mm, which is suitable for refitting various sanitation vehicles
(2)The cab is equipped with standard electric doors and windows, central locking,MP5, wrapped airbag shock-absorbing seats, high-density foam, and more than 10 storage spaces such as cup holders, card slots, and storage boxes, bringing a comfortable driving experience
(3)The lightweight design: the curb weight of the second-class chassis is 7800kg , the maximum total mass is 18000kg, and the load capacity is higher than similar products
(4)Equipped with 100.7 kWh power battery + hydrogen stacks of different brands and powers to meet the long-term operation and driving of the vehicle
(5)Equipped with 20+60+120kW three high-power working system power-taking interfaces to meet the electrification needs of various special-purpose vehicles
18T Back-mounted chassis
(1) The battery layout adopts the back layout, and two wheelbases of 5000mm and 5300mm are available
(2) The cab is equipped with standard electric doors and windows, central locking,MP5, wrapped airbag shock-absorbing seats, high-density foam, and more than 10 storage spaces such as cup holders, card slots, and storage boxes, bringing a comfortable driving experience
(3) Equipped with two capacity power batteries of 229.63kWh and 287.04kWh, the small power is suitable for refitting compressed garbage trucks and sprinkler cleaning trucks, and the large power is suitable for refitting washing and sweeping vehicles and dust suppression vehicles. The power battery is equipped with water cooling + PTC as standard heating thermal management system, adapting to the use of vehicles under various environmental conditions
(4) Equipped with 20+60+120kW three high-power working system power-taking interfaces to meet the electrification needs of various special-purpose vehicles
