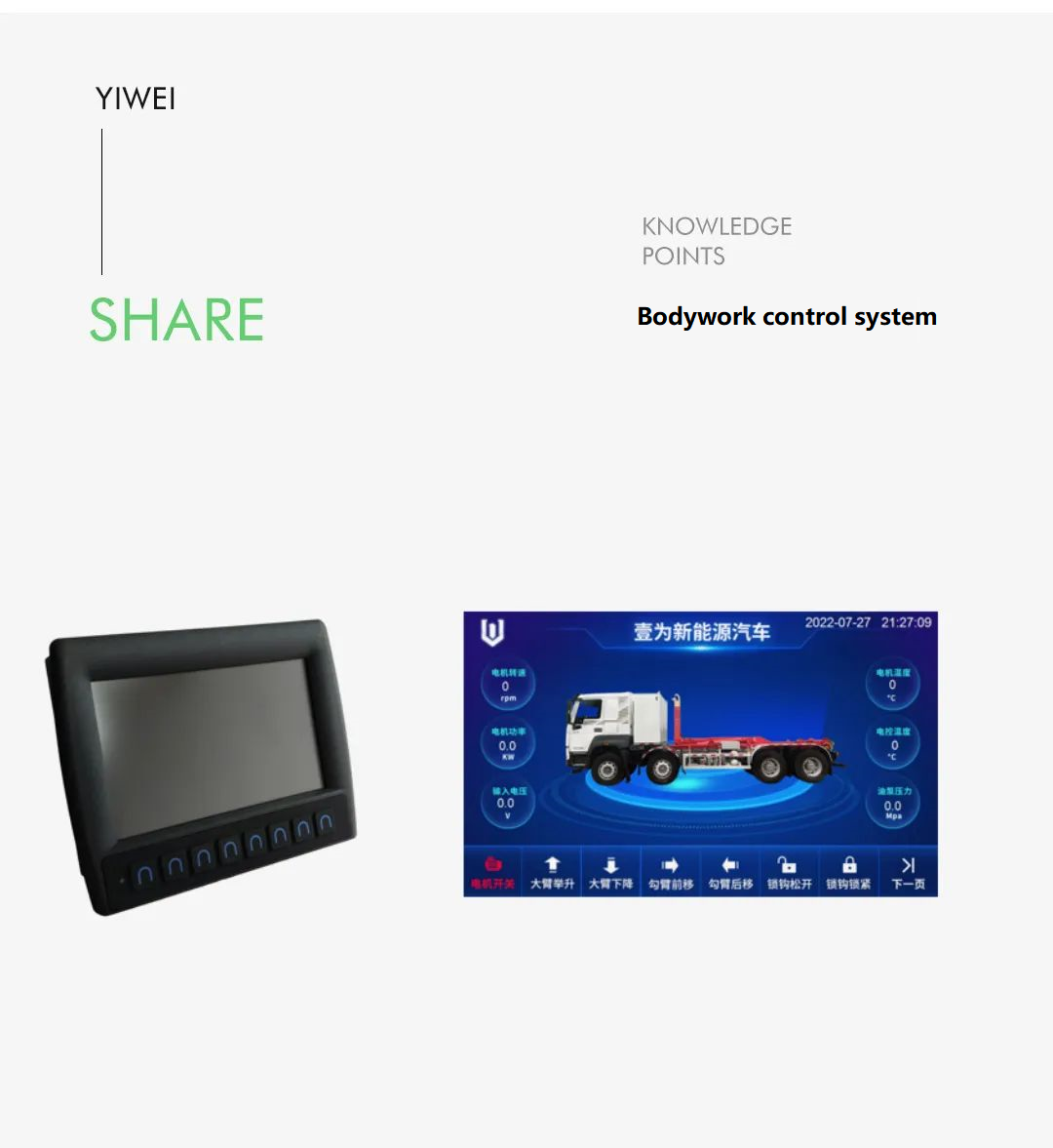

In terms of bodywork control, users can control and interact with the bodywork system through the central control panel. The central control panel adopts a customized UI combined with the vehicle model. The parameters are concise and clear, and the operation is simple and convenient. The central control panel is connected to the bodywork controller through the CAN bus. After receiving the user’s operation on the central control panel, the bodywork controller will respond according to the designed control logic, output electrical signals, and control the solenoid valve/relay to perform corresponding actions. The motor controller starts the motor. In addition to the central control screen, users can also control the upper loading action through the control panel and remote control.
Yiwei bodywork control system is highly informatized. In addition to responding to signals and outputting signals, the bodywork controller also interacts with the VCU and motor controller through the CAN bus, collects and processes various data, and sends them to the data collection terminal then sent to the cloud platform, so as to realize the real-time online monitoring of the bodywork system. It can keep abreast of the movement of the vehicle’s bodywork, the state of the bodywork parts, and whether there is a failure, etc.

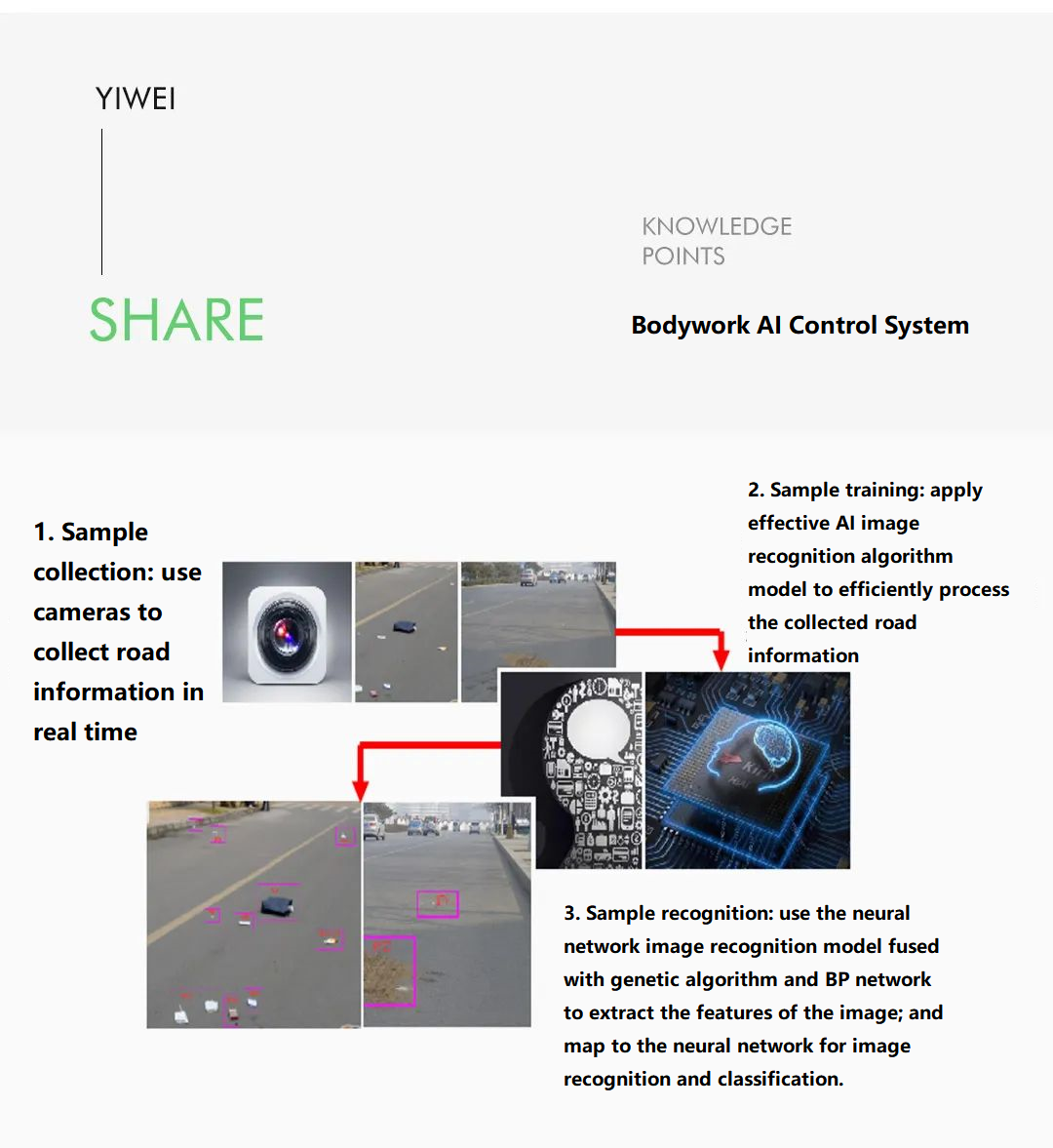

In addition, Yiwei is committed to promoting the intelligent development of new energy sanitation vehicles. Use Huawei’s AI edge computing chip to develop a top-mounted AI control system based on visual recognition technology. It collects video images of the road in front of the vehicle in real time through high-precision cameras, judges the road scene, and realizes dynamic adjustment of the top-mounted power output, energy-saving prolong battery life and other purposes. This bodywork AI control system is based on image visual recognition technology, has high scalability, and can be applied to the field of bodywork control of unmanned sanitation vehicles.
