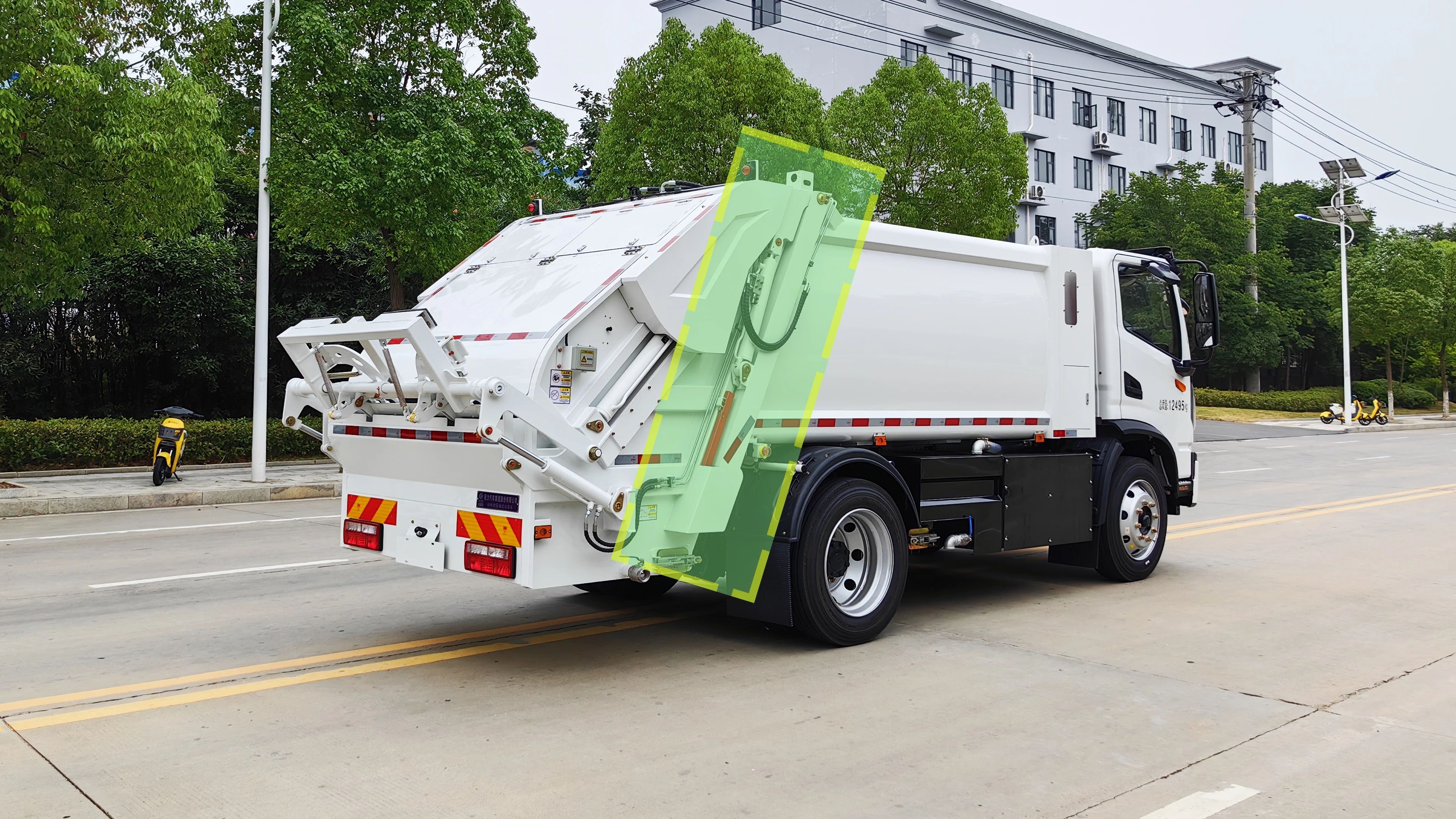

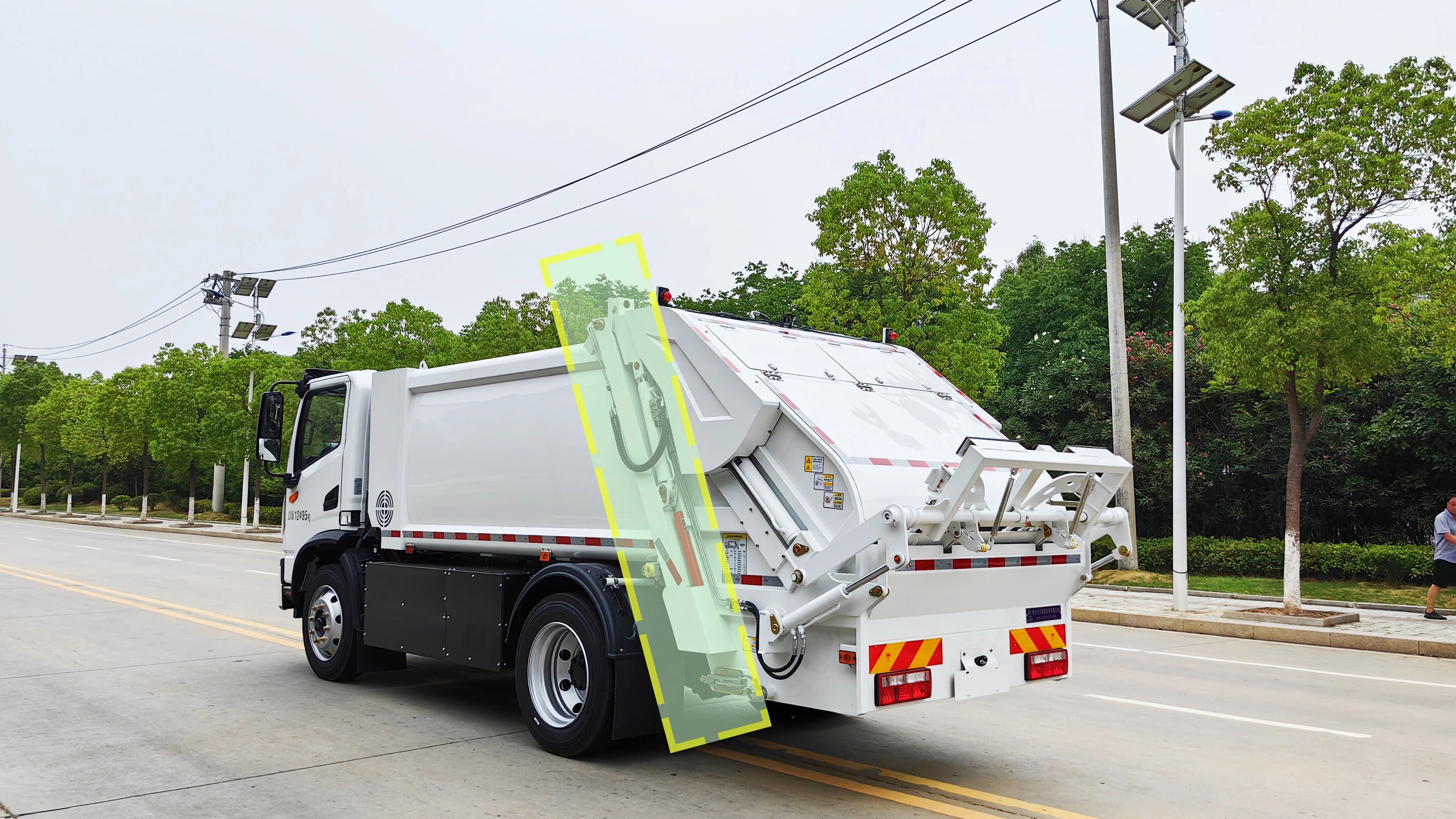

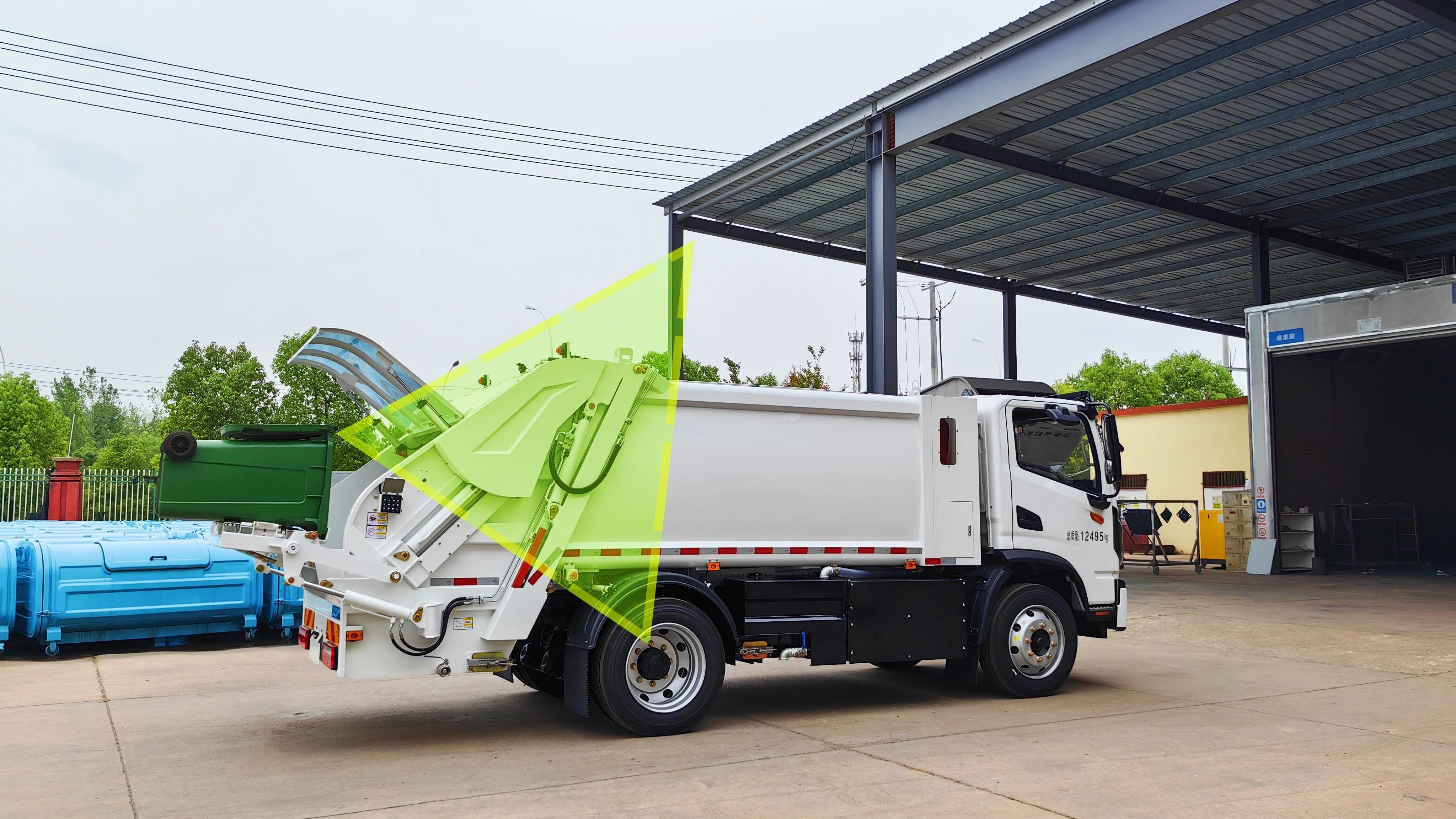

anitation garbage trucks are the backbone of urban cleanliness, and their performance directly impacts both the tidiness of cities and the quality of life for residents. To address issues such as wastewater leakage and garbage spillage during operation, YIWEI Automotive’s 12t pure electric compression garbage truck offers an innovative solution. With a design focused on sustainability and efficiency, this truck uses pure electric drive to lead urban sanitation into a new era of high performance and environmental friendliness. This model features a 360° seamless sealing design that not only considers the dynamic characteristics of the garbage truck during operation but also fully integrates the practical needs of waste management. By adopting a high-hinge point layout, the filler mechanism and the trash compartment are raised together as a whole, optimizing the space for waste loading and providing more favorable conditions for the sealing design.

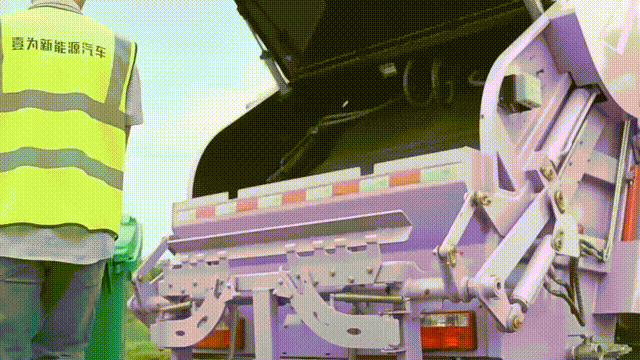

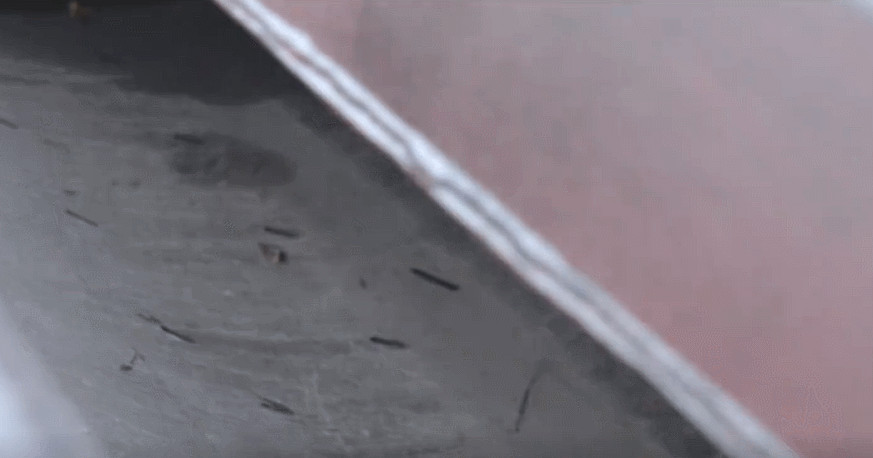

The opening of the filler mechanism is controlled by a cylinder, which drives the filler lid to open and close, ensuring that both the trash compartment and filler mechanism are fully enclosed. A horseshoe-shaped sealing strip between the filler and the trash compartment ensures an all-around seal — top, bottom, and sides — effectively preventing wastewater spillage and garbage leakage during transportation.
To address the potential risk of sealing failure, the designers at YIWEI Automotive have cleverly added extended wastewater baffles. This design ensures that even in the event of slight damage to the sealing strip, wastewater is efficiently diverted into the wastewater tank, preventing it from spilling out and contaminating the environment. This dual protection design provides a reliable safeguard for the city’s sanitation efforts, ensuring no leakage.

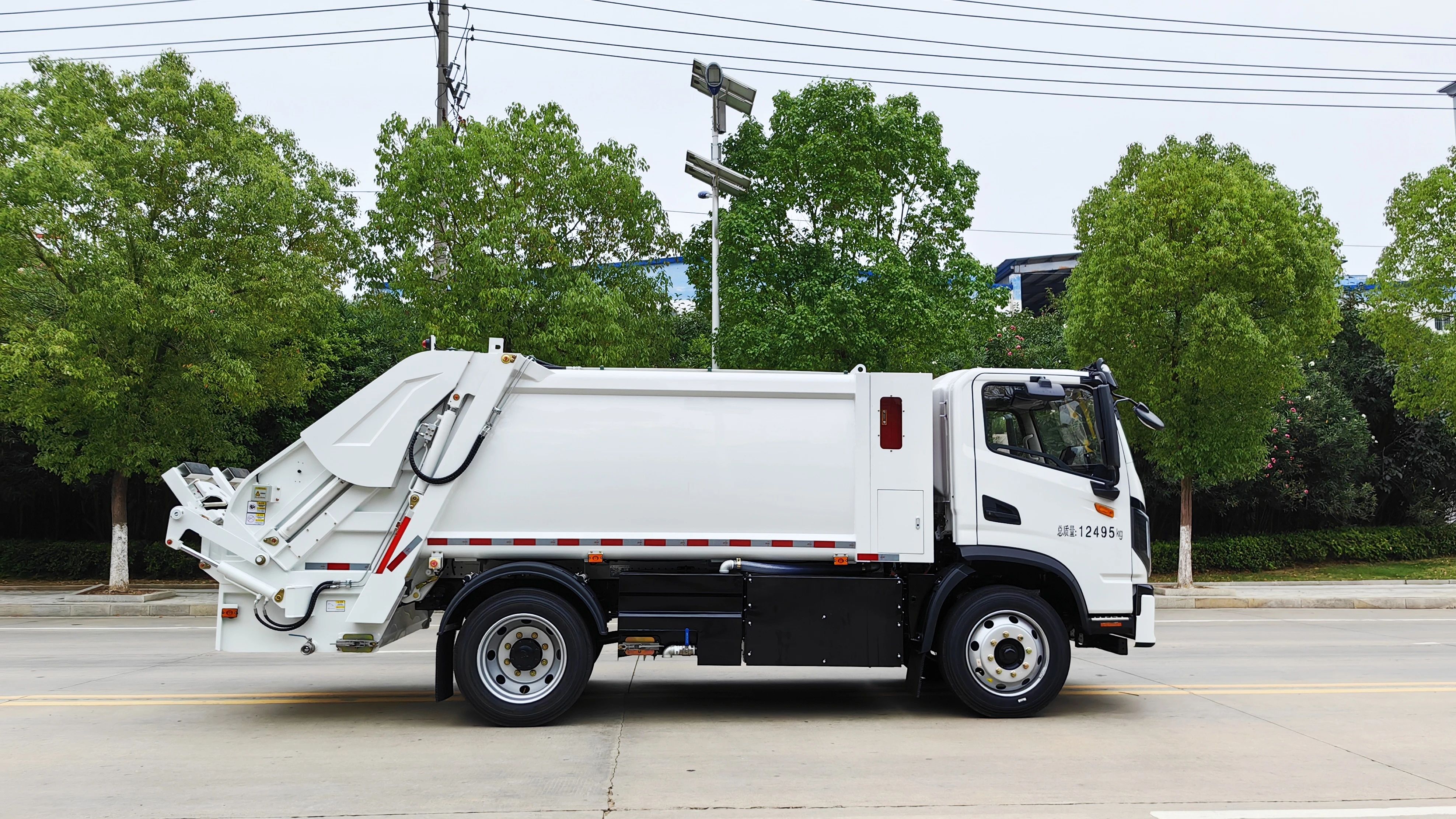

The model has a net capacity of 8.5 cubic meters, significantly increasing the loading capacity compared to similar models. It features bidirectional compression technology that increases the compression ratio of the waste, greatly enhancing the garbage loading capacity. It can load up to 180 bins (240L garbage bins, with actual capacity depending on waste density). The optimized hydraulic system, scraper plate, and filler structure increase the compression ability to 18 MPa. Within the same operational time, this model can collect and transport more waste.
The driver can operate the truck’s functions with one-touch controls in the cabin or use the control panel at the rear of the vehicle to collect and unload waste with a single action. Additionally, the truck incorporates several user-friendly features: a rotary gear shift, anti-slip, low-speed creeping capabilities, and an optional 360° surround-view system to ensure safe and worry-free operations. These features make urban sanitation work more efficient, intelligent, and secure.
In summary, YIWEI Automotive’s 12t compression garbage truck injects new vitality into urban sanitation with its innovative design and exceptional performance. It not only addresses many of the challenges faced by traditional garbage trucks but also boasts significant advancements in intelligence and informatization, further simplifying operations and improving operational efficiency.
Post time: Nov-19-2024
