Full Range Pure Electric and Hydrogen Fuel Cell Chassis

Short Description:


Product Detail

Product Tags

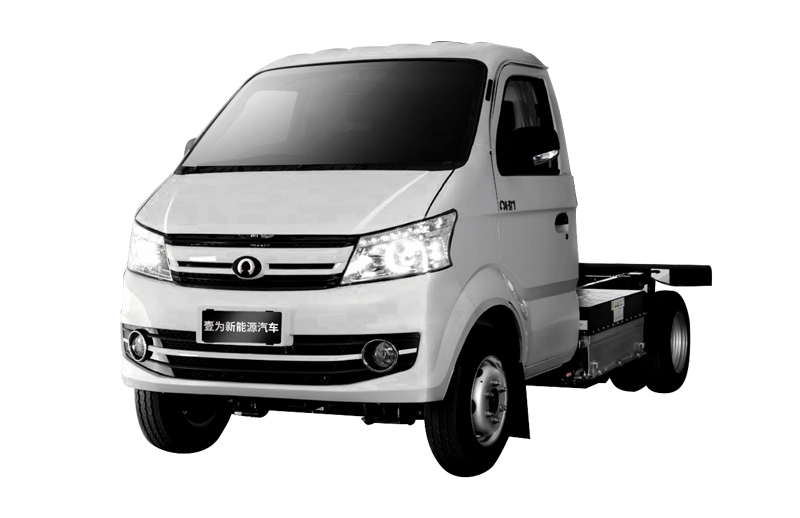

3.5T

• Large modification space: The chassis is equipped with an integrated electric drive axle, which reduces the curb weight of the chassis and saves layout space.

• High-voltage system integration: While satisfying the requirements of light weight, it reduces the connection points of the high-voltage wiring harness of the whole vehicle, and the reliability of the high-voltage protection of the whole vehicle is higher.

• Short charging time: Support high-power DC fast charging, 40 minutes can meet SOC20% recharge to 90%.

3.5T

9T

• The battery layout of the 9T pure electric medium truck chassis can be selected as side-mounted or rear-mounted, which can meet the needs of various special bodywork modifications.

• The cab is equipped with standard electric doors and windows, central locking, wrapped aviation seats, high-density foam, and more than 10 storage spaces such as cup holders, card slots, and storage boxes, bringing a comfortable driving experience.

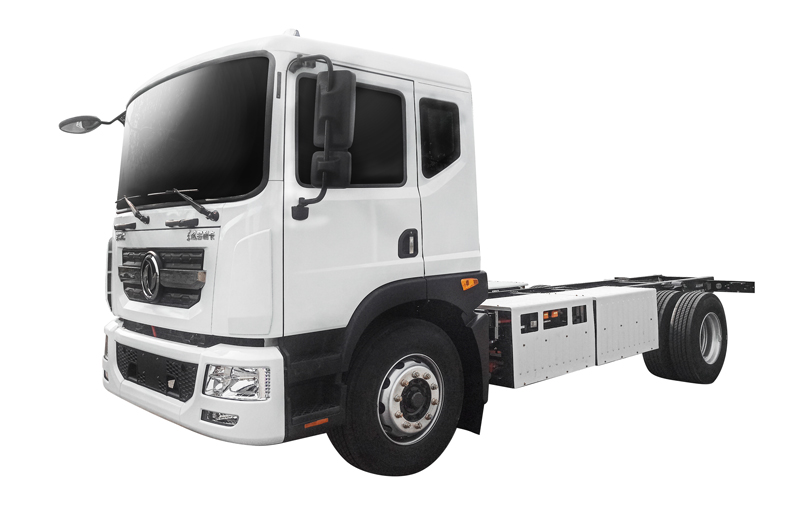

18T

• Suitable for the refitting needs of washing and sweeping vehicles, multi-functional dust suppression vehicles, cleaning vehicles and other vehicles.

• The cab is equipped with electric doors and windows, central locking, MP5, wrapped aviation airbag shock-absorbing seats, high-density sponge, and more than 10 storage spaces such as cup holders, card slots, and storage boxes, bringing comfortable driving ride experience.

18T

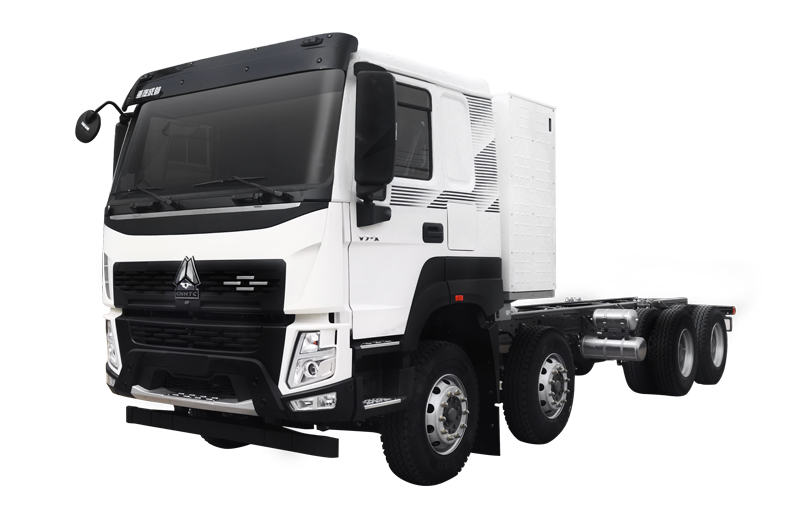

31T

31T

• Equipped with a high-power motor + automatic transmission system, which ensures the excellence performance of the vehicle and reduces the curb weight of the chassis.

• The golden wheelbase of 1800+3525+1350mm meets the needs of special-purpose bodywork such as detachable garbage trucks and concrete mixer trucks.

Parameters of Chassis
Dimensions (mm) 9575*2520*3125
Maximum total mass (Kg) 31000
Chassis curb weight (kg) 12500
Wheebase (mm) 1800+3525+1350
Electric System
Batery capacily (kWh) 350.07
Batery pack vollage(V) 579.6
Motor type PMSM
Motor rated/peak torque (N.m) 1600/2500
Motor rated/peak power (kW) 250/360
